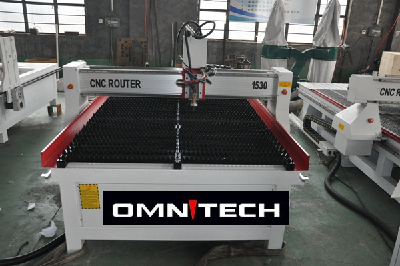

CNC Plasma Cutting Machine Features:

 1 Welded lathe bed of thick-wall profiled steel, more solid and stable.
  2 Reasonable lathe table design, 10 mm thickness steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame. The level difference of whole double-deck platform remains in 0-1.5mm.
  3  High quality stepper motor and high accuracy rack transmission. Low noise, stable and accurate coordinate movement.
  5 DSP offline hand controller; Software Type3 and Ucancam with auto material saving function.
  6 Standard configuration: Fuli 100A plasma generator, which can cut through 10mm metal plate.
  7 Best choice for all kinds of different thickness material and heterotypic sheet cutting.
  Capacitance height control

 The advanced height linear calibration technology makes the cutting nozzle and cutting board be within 3 ~ 30mm in the automatic height controlling in the capacitance mode;

  Simple and convenient linearization calibration

 The function of "One key for height calibration" guarantees that in any circumstances, the user only needs to press a key, he can calibrate the absolute height measurement and achieve a linear height measurement.

  OMNI THC control system able to

 1.Perform corner speed control and height control,

2.Breakpoint restoration, automatic power-back recovery and automatic breakpoint memory,
3.Special short line machining feature based on smooth travel, extensively applicable to metal blanking as well as advertisement
4.Advanced material inclined discharging design. All finished work pieces and fragments slide into tunnel for safe and convenient collection.

 Details Show

Torch height controller which   could sense the different heightness of same metal material for

  avoding the crash of torch head to material, and adjust the head in time.

Portable plasma cutter and flame cutter

Cnc router with plasma cutter

plasma cutting with flame cutting gantry moving machine

Heavy type  plasma cutting with flame cutting gantry moving machine

New style plasma special refractory steel table

  Start control system could reasonability check and report for user's option ,

 automatic power back recovery and automatic breakpoint memory,
