- Size: 14cbm
- Place of Origin: shangdong
- Brand Name: OMNI CNC Technology Co.,Ltd
- Model Number: 1325
- Weight: 2200.000 kg
Best service new design woodworking cnc router 1325
(Performance index) | Parameter) | (Optional) |
Frame | Heavy T | |
working area | 1300*2500*200mm | 1530 2030 2040 |
Table | Bakelite vacuum T slot | PVC aluminum T slot |
Guide rail | X,Y,Z axis Hiwin 20mm | Hiwin 25,30mm linear rail |
Drive mode | X,Y axis rack,pinion | Heilical rack,pinion |
Z axis TBI2505 ball screw | ||
Spindle brand | HSD air cooling | HQD aircooling,Changsheng water cooling |
Spindle power | 3kw 18000rpm | 4.5 6 7 kw |
Calibration | Mauanl | |
VFD inverter | Omron | Delta,Fuling |
Motor | Yaskawa850w servo motor | China Fuxing 86 118 8.7nm stepper motor |
Drive | Yaskawa1kw | Yako 2811 drive |
Traveiling speed | 50m/m | 30m/m(Stepper motor) |
Working speed | 30m/m | 20m/m (Stepper motor) |
Working accruacy | 0.05mm | |
Control system | DSP usb interface | Mach3,Nc studio,Synetc |
Dust collector | 3kw 2 bags | |
Vacuum pump | China dry 120cbm/h pump | Germany Becker pump160cbm/h |
Tools | 20 sets wood tools | |
Operating voltage | 380V3phase | 220v3phaes |
Package | Strong plywood | |
Package size | 3200*2300*1900(1325) | |
Gross weight | 2000kg |
Pneumatic Tool Change CNC Router is very easily to use. Users only need to save the cutters position in the
tool path, then system could realize the cutter auto changing according to the cutter code. And the user does
not need to worry tool changing failed or spindle changing speed etc, also will not feel pity using 9 kw
spindle to drill 6mm holes.
This series support spindle integrated control for multihead from 2 to 8pcs, can delivery command to spindles
to work in tandem, also can work similar as CNC router with auto tool changer.
Pneumatic Tool Change CNC Router allow users to set different tool path for different spindles( cutters),
similar working mode as auto tool changer. When the first spindle complete its work, the second spindle(cutter) can go on its own work automatically.
The advantage using Pneumatic Tool Change CNC Router is its high speed of spindle changing or we call it
cutter changing, only takes 2 seconds, you can turn on spindle in advance for warming up; could using
different spindle, from 800w to 6.5kw, do not have to use 9 kw ATC spindle to drill holes; easier
maintenance, replace spindle easily; no exist of tool changing problem, will not have to stop working
because of failed tool changing problem, good for mass production line.
Pneumatic Tool Change CNC Router prove you that time is money. High efficiency, easier operation, low
maintenance fee. You only need to install the extra spindle ( ATC spindle is very expensive, while common
spindle is only 30%-60% around of it at the price.
Details picture

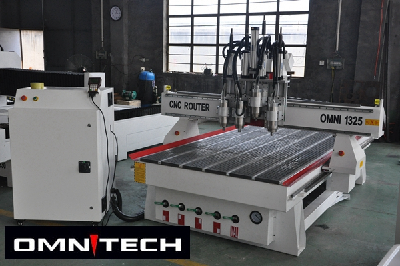

4 sets water cooling spindle on cnc router
CE standard control cabinet,2 sets Delta VFD,DSP hand control system
Strong ply wood case
12 months for machine. Also we supply lifetime service online 24 hours a day MSN, Skype, Yahoo, Gmail and so on. You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences
2, Own most advanced domestic cnc machining production equipments
3, 10-15 days machine production time, one year warranty and lifetime free maintenance
4, OEM and ODM services available
5, Same quality, our price and service are better; Same price, our quality and service are better
6, with CE, FDA, SGS, ISO9000 certifications
Omni atc cnc router,4 axis cnc router
Guarantee OMNI Offered?
CNC Router--full 12 months back to base warranty on the router cnc and relevant manufacturers warranty on 3rd party add ons. This covers electrical and mechanical parts under 'normal use'.
Laser Machine-full 12 months back to base warranty on the laser machine and relevant manufacturers warrty on 3rd party add ones except consumable parts. Warranty for laser tube RECI brand: 6 months, Lens&Mirror: 3 months.
CNC Plasma Machine--full 12 months back to base warranty and relevant manufactures warraty on 3rd party add ones except consumable parts. Such as: nozzle, electrode, protection cap etc.
--------------------------------------------------------------------------------
Order Delivery Flow
Mark: FOB(Free on Board)-- the seller to deliver goods on board a vessel designated by the buyer. The seller fulfills its obligations to deliver when the goods have passed over the ship's rail.
EXW--the seller to deliver goods at his or her own place of business. All other transportation costs and risks are assumed by the buyer.
CIF--seller to arrange for the carriage of goods by sea to a port of destination, and provide the buyer with the documents necessary to obtain the goods from the carrier.
CFR--the seller to arrange for the carriage of goods by sea to a port of destination, and provide the buyer with the documents necessary to obtain the goods from the carrier. Under CFR, the seller does not have to procure marine insurance against the risk of loss or damage to the goods during transit.
--------------------------------------------------------------------------------
How do you send your CNC wood router?
They are firstly greased thouroughly and packaged in a free-fumigation wooden crate. Usually, we send machine by ship, sometimes, as customer's requirement, send by air or by train. When the goods arrive at your sea port or destination, you can pick up goods with the bill of lading we offered. Or we can arrange the cargo agent to send goods to your door.
--------------------------------------------------------------------------------
I want a size that you don`t make as standard, is this possible?
Absolutely, we design and manufacture everything ourselves and indeed do many custom builds, see custom made cnc router.
--------------------------------------------------------------------------------
I am new to CNC, how difficult are your machines to operate?
We help a lot of beginners in CNC, if you have a reasonable knowledge of computers and are willing to spend a little time learning it is not that bad. Quite often when we sell a machine we send the manual and CD's out before the machine is ready for the customer to read ahead.
--------------------------------------------------------------------------------
Does machine comes with software?
Yes, we offer Type3, ArtCAM software with machine, so it will be more convenient for you to operate machine.
--------------------------------------------------------------------------------
How do you make the machine to cut parts? Is it easy?
CNC Controller, the motion control software we use, is based on standard G-codes. The G-codes provide a source code comprised of inches and axis movements which can be edited and understood by others. Most CAM packages will generate G-codes from the drawings you create. What you need is to create program from CAM software.
--------------------------------------------------------------------------------
Do you offer training about products?
Yes, we can assign technician arrive at your company for the training at some charge, and accommodation, food, tickets will be charged.
--------------------------------------------------------------------------------
Are there any machine in my area I can observe?
OMNI have machines at many countries, if there is our machine in your country, we can contact the customer to arrange a visit for you.
--------------------------------------------------------------------------------
Do you also sell accessoreis?
Yes, we offer customer accessoreis including cnc router, laser, plasma parts for backup. Or you may only purchase accessories, we also offer, such as MPG handwheel for Mach3, StarCam Software, 3D Scanner etc.
