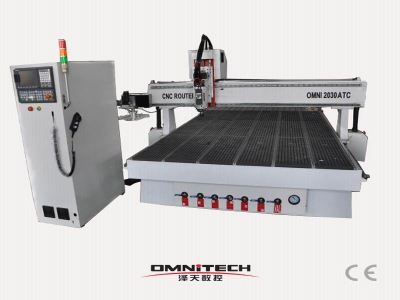

2030  linear type ATC cnc router

2030 linear type ATC cnc router

  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 200 Set/Sets per Year
  • Port: Qingdao
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2011-10-09
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  15cbm
  • Place of Origin:  Shandong
  • Brand Name:  OMNI CNC Technology Co.,Ltd
  • Model Number:  2030
  • Weight: 2500.000 kg



2030 cnc router Description

1. T-gantry, with high precision linear guide rails and double nuts ball screw for transmission.

2. Cutting size: 2000*3000 mm.

3. Control system: Synetc  control system, easy to learn and convenient to use.

4. Color is optional, Rotary axis, vacuum table and dust collector can be added as your demand.

5. 8mm thick heavy-duty tubular steel main body to ensure the stability while working at high speed.

6. Automatic tool changer, magazine capacity is 8, change tools in 8 seconds.



Application Materials of 2030 cnc router

Suitable for Plastic Plate, PVC sheet, Artificial stone, Marble, Granite, Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Ceramic Tile, Tombstone, milestone, Limestone, Sandstone, Quartzite, Jade, Crystal, Plexiglass, Aluminum sheet, Copper sheet etc.



Guarantee & After-sales service of 2030 cnc router

Guarantee for one year

24 hour technical support by email or calling

User friendly English manual and Video CD for machine using and maintenance



Name

 Omni 20 3 0   cnc router

Change parts

X,Y,Z working area

2000* 3 000*200,mm

1325 1530 20 40

Table size

2100* 3 540mm



Spindle

Italy HSD air cooling spindle

water cooling spindle

Tool magazine

Carrousel

Linear type

Frequency converter

 Japan Omron,Taiwan Delta,China Fuling



Motor

4sets JapanYaskawa AC servo motor SGMGV-09ADC61model 850w servo motor

Stepper motor

Drive

4sets Japan Yaskawa SGDV-7R6A01A00200 model 1kw drive



XYZ Travelling Potioning Accuracy

±0.05/300mm



Max Rapid Travel Rate

50,000mm/min



Max working speed

30,000mm/min



Table surface

Bakelite  Vacuum Table +Aluminum T-slot Extrusion

PVC T slot table

Vacuum System

Independed divided part vaccum area with manual swtich

Electronic switch

Frame

Steel Square Tubes up to 8mm, T type



X, Y structure

Helical Rack & gear transmission ,Hiwin 30MMrail linear bearing (HGR30)



Z structure

TBI  ballscrew,Hiwin  30MM rail linear bearing (HGR30)



Lubrication

Auto



Control system

Synetc   control system



Command languages

G code



Software compatability

Origin Artcam+Dongles



Switch and emergency stop

SCHNERDER  switch, Omron emergency stop  from Japan



Extra  parts





Vacuum pump

Germany Becker KVT3.140 (140cbm/h)





Dry rotary vane vacuum pump 160cbm/h





5.5kw Dry volute vacuum pump  120cbm/h





2.2kw votue vacuum pump 80cbm/h   220v1 phase



Mist sprayer

Soft metal working



Dust collector

3kw 2 bags +dust hood   35-40m/second, 3150cbm/h



Air pop up pins





Rotary

200*2000mm  (Custom-made diameter,length)



Free parts

Clamp,20 sets tools, collet,seal line,water proof tape,brush,spanner and tool box.









Working voltage

AC220v/3phase 380v3phase



Net weight

25 00KG



Gross weight

28 00KG
