- Size: 16
- Place of Origin: China
- Brand Name: OMNI CNC Technology Co.,Ltd
- Model Number: 1325
- Weight: 1800.000 kg
Product Description

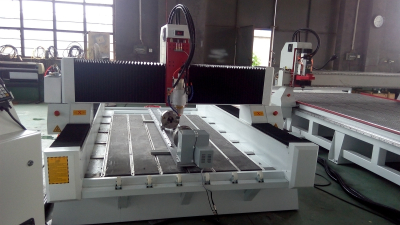

Headstone/tombstone/gravestone series engraving machine/stone CNC router/stone engraver Heavy Duty stone CNC Router(Omni -1325)
Features
1. The whole bed welded steel strong, forceful, smooth rotation , making high speed operation for a long time without deformation , no jitter
2. Big Power inverter spindle , continuously variable transmission , low noise .
3. The machine with double water circulation system , can protect the tools better .
4. PC control system , three dimensional dynamic tracking display features automatic knife , three-dimensional simulation .
5. can save 10 breakpoints, with a function that continue carving even if has breakpoint.
After stopping the electric, it can still working later, it can reduce the rate of rejection.
Applicable materials and field
Marble, granite, China black, bluestone, jade, ceramic, crystal, glass, plastic, chemical synthesis of plate glass, PVC board, wood, aluminum panels, metal, plastic and other materials for line engraving, 2D sculpture, 3D sharp sculpture, three-dimensional relief, cutting, drilling.
Stone, tombstone processing, advertisement, decoration, and crafts industry, etc
Usage: stone carving, tombstone processing, advertisement , decoration and craft industry, etc.
Headstone/tombstone/gravestone series engraving machine/stone CNC router/stone engraver
Skype :omnisales6
WhatsApp: 86 185 6020 1508
- Size: 16
- Place of Origin: China
- Brand Name: OMNI CNC Technology Co.,Ltd
- Model Number: 1325
- Weight: 1800.000 kg
| Headstone/tombstone/gravestone series engraving machine/stone CNC router/stone engraver Parameters | |
| X,Y,Z working area | 1300*2500*300 mm |
| Transimission | Rack,opinion for X,Y axis,Germany 2505 Ball screw for Z axis |
| Guide rail | Taiwan Hiwin 20mm linear rail (25mm,30mm optional) |
| Body Dimension | 1500*3040mm |
| Machine Body | T type ,Ultra thicken steel tubes with quenching treatment |
| Table | Bakelite T slot water channel wheel |
| Spindle Power | 6 kw watercooling spindle, 24000rpm (4.5kw,5.5kw optional) |
| Converter | Taiwan Delta (China Fuling optional) |
| Motor | Stepper (Yaskawa or Delta servo optional) |
| Dirve | Yako 2811 |
| Max. Rapid Travel Speed | 35m/min |
| Working speed | 20m/min |
| Repeatability | /- 0.02mm |
| control system | DSP off line (Mach3 ,NC studio opitional) |
| Command language | G code |
| Soft ware | Art cam type3 |
| Working voltage | 380V/220V ,3 phrase |
| Package | Strong plywood case |
| Package size | 3300*2400*2000mm |
| Weight | 2200kg(NW) 2400kg (GW) |
